Water Softeners & Ultrafiltration Systems

Water Softeners

High-Performance Filtration. Built for Industrial Demands

Key Features

The ZeeWeed 1500 membrane has a 0.02 μm nominal pore diameter - for optimal removal of particulates, bacteria and viruses. Its PVDF chemistry gives mechanical strength and chemical resistance.
Z-PAK’s modular mechanical and electrical design of membrane racks and pump skids provides tremendous design flexibility while minimizing site installation.
Z-PAK has a large flow range – 300 gpm for 1 train up to 4000 gpm for 4 trains, and allows high recoveries (up to 97% with 2 stages)
Z-PAK operates automatically (including membrane integrity tests, cleans and neutralization. The Z-PAK membrane rack makes it easy to monitor and maintain membrane performance
Z-PAK is designed with high quality equipment and materials to ensure long term, robust performance. Equipment is well laid out for ease of access.
Flow rates from 40 to 4,000 GPM per skid
Ancillary skid(s) Either separate or shared backpulse and CIP
Air compressor and Blower

🧰 Optional Enhancements

Duplex CIP and Backpulse equipment with on-skid VFDs (standard is single CIP/BP)
Membrane Integrity Test (MIT) and LRV
Air Compressor(s) & drier(s)
Laser permeate turbidity
Chemical Cleaning chemicals
CIP neutralization
Feed Turbidity meter
Pre-treatment (enhanced coagulation, oxidation, & pH adjustment)
Bleed and Block Valves
Permeate storage tank

Materials of construction

Low Pressure Piping PVC
316 SS Air Piping
Skid Frames Epoxy coated Carbon Steel

Typical permeate quality

Recovery Range (single stage) 90-95% Bacteria, Giardia, Cryptosporidium ≥4-log removal
Iron ≤0.05mg/L ¥
Manganese ≤0.02 mg/L ¥
TSS ≤0.1 mg/L
TOC 50-90% removal ¥0
Arsenic <5μg/L ¥
Color

Ultrafiltration Systems

Protect Your Equipment. Improve Process Efficiency.

Features

Flow rates from 400 to 1,000 GPM per vessel
Design Pressure: Per client’s requirement
Face Plumbing: Carbon steel, stainless steel or schedule 80 PVC
Valve Operation: Pneumatic, water, electric or manual actuated
Skid Mounted Option: Carbon steel or stainless steel
Automated backwash and manual/time-initiated regeneration options
Integrated control package with communication switch for seamless operation
Multiple valve configurations: hydraulic, pneumatic, electric, or motor-driven

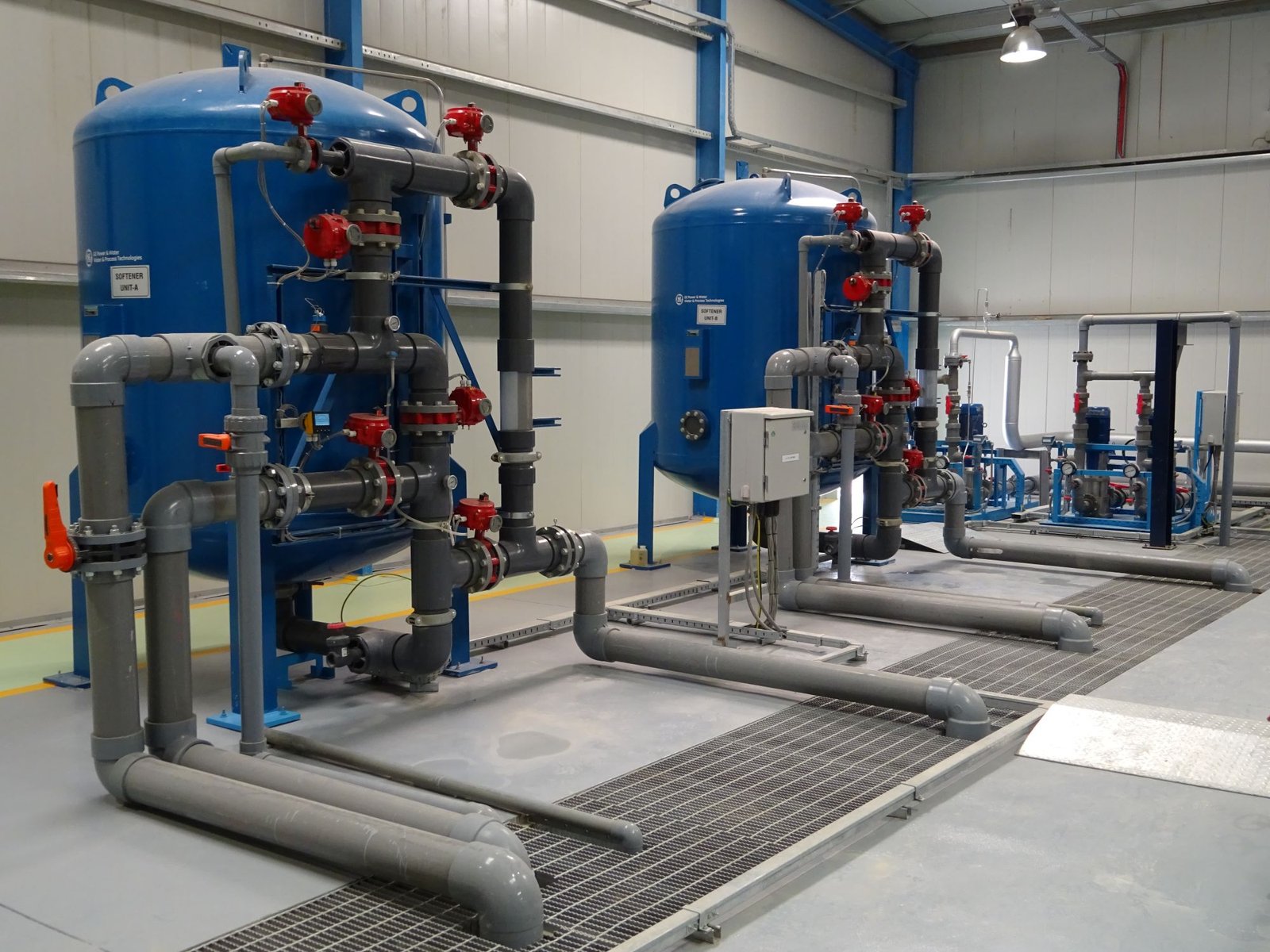

Filter Types Offered

Flow rates from 40 to 1,000+ GPM per vessel
Vessels: Epoxy-lined carbon steel tanks, ASME code stamp at 100 psig
Stand-alone tanks or modular skid-mounted (pre-piped & pre-wired) options
Brine tank with cover and air check valve
Design Pressure: Per client’s requirement
Internals: Stainless steel or schedule 80 PVC
Face Plumbing: Carbon steel, stainless steel or schedule 80 PVC
Valve Operation: Pneumatic, water, electric or manual actuated
Skid Mounted Option: Carbon steel or stainless steel
Internals: Stainless steel or schedule 80 PVC

Filter Types Offered

01. Activated Carbon

Organic removal & taste/odor control

02. Multi-Media

Turbidity and solids reduction

03. Activated Alumina

Fluoride and arsenic removal

04. Manganese Greensand

Iron and manganese removal

05. Neutralization

pH adjustment and corrosion control
