Seawater Desalination

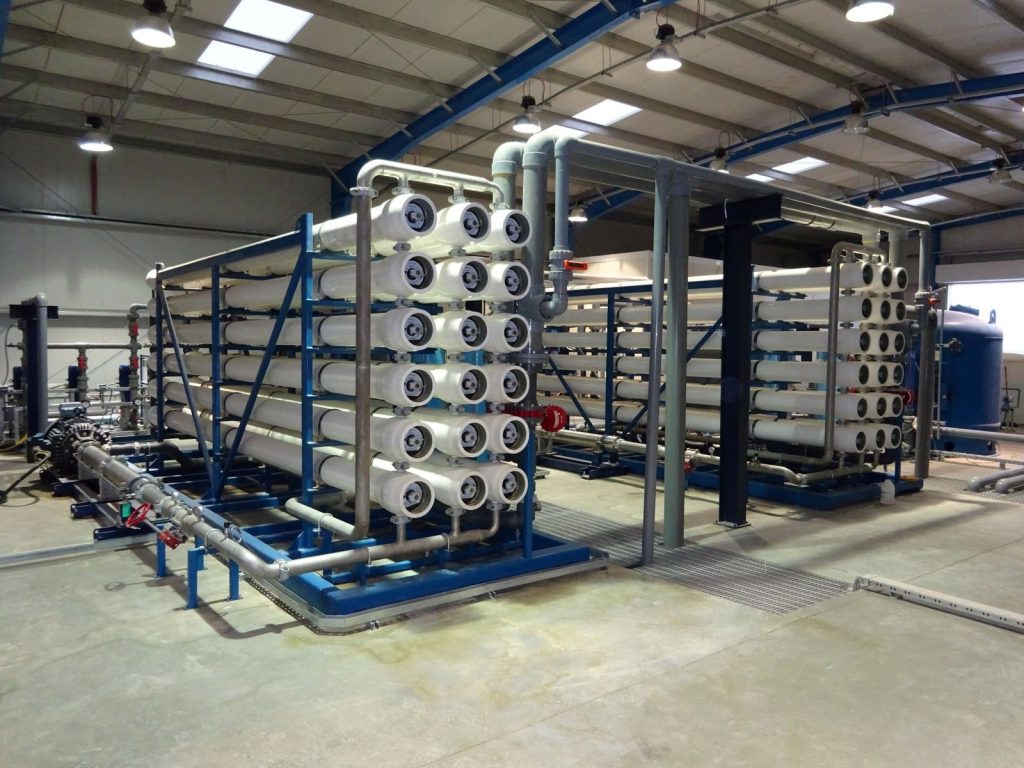

Containerized and skid-Mounted Reverse Osmosis (RO) Systems for efficient, reliable and safe Water Treatment

Single source responsibility with 50+ years experience… trusted provider

Project controls (In-House fabrication – Cost effective – Quality control – Time saving)

Reverse osmosis (RO) is a membrane process designed primarily for the removal of TDS (Total Dissolved Solids). RO also removes TOC’s (Total Organic Carbon) and colloidal materials. RO supplements ion exchange in applications where there is a wide variation in process water quality.

Seawater Reverse Osmosis (TI-SWRO) Systems provide a reliable, high-performance solution for converting seawater into clean, potable water. Using Reverse Osmosis technology, they efficiently remove salts, minerals, and contaminants to produce freshwater for industrial, commercial, and municipal applications.

Thermotic RO Systems create fresh, potable water that meets safe drinking water standards worldwide, including primary and secondary EPA and WHO standards. Our membrane systems can remove…

Giardia
Cryptosporidium
Viruses
Trihalomethane Precursors
Arsenic
Nitrate
Fluoride
Pyrogens
Sodium
Calcium
Magnesium
Chloride
Sulfate
Bromate
Phosphate
Radionuclides

⚙️ Key Features

Flow capacities from 18 to 600 GPM
Major components skid-mounted for easy installation and dependable operation
Variable frequency drive (VFD) for high pressure pump optimal control, energy efficiency and constant water production
Advanced instrumentation for pressure, flow, and performance monitoring
PLC driven control panel & VFD
Product TDS meter
Low- & High-pressure protection
Permeate & concentrate flowmeters
Corrosion resistant features
Duplex SS-high pressure pipe lines
PVC sch 80- LOW pressure pipe lines
Pressure exchanger or Turbo charger as energy recovery device
FRP pressure vessels pump
Remote Control Monitoring
Automatic product water flush on shutdown

🧰 Optional Enhancements

ASME Code stamped pressure vessels
Post-treatment degasifier
400 V, 3 Ph, 50 Hz fuse, A/C, Lighting kit
pH meter and chemical feed
Pretreatment & Posttreatment chemical feed
Installation and commissioning
Supervision/services are available

 ✅ Applications

Boiler & OTSG feed water
Municipal Drinking Water
Municipal and Industrial Wastewater Reuse
Cooling Tower Makeup
Chemical manufacturing
Metal finishing
Large scale irrigation
Pharmaceutical
Food & Beverage

Technical Specifications

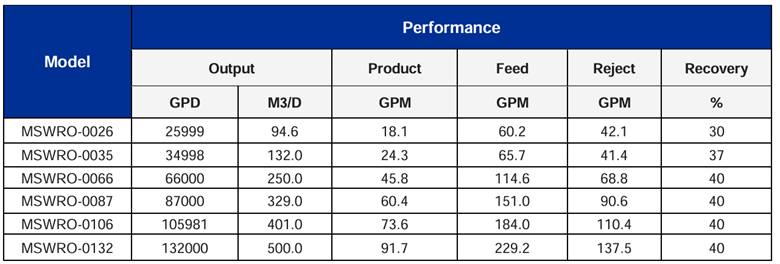

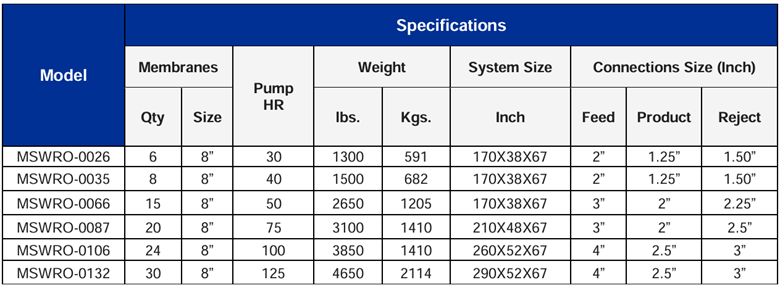

MEDIUM SEAWATER REVERSE OSMOSIS SERIES (MSWRO)
TI Containerized & Skid Mounted Packages

Technical Specifications

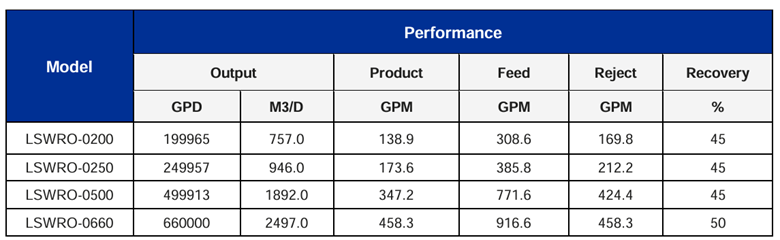

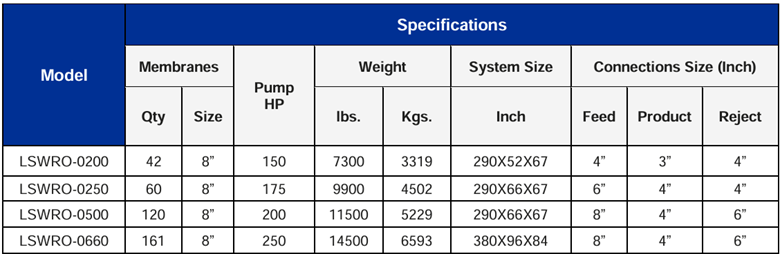

LARGE SEAWATER REVERSE OSMOSIS SERIES (LSWRO)
TI Containerized & Skid Mounted Packages
